13-Megapixel AF Auto-Focus MIPI Camera Module – 5P+IR HD Imaging Module with Customizable Dimensions

Product Description

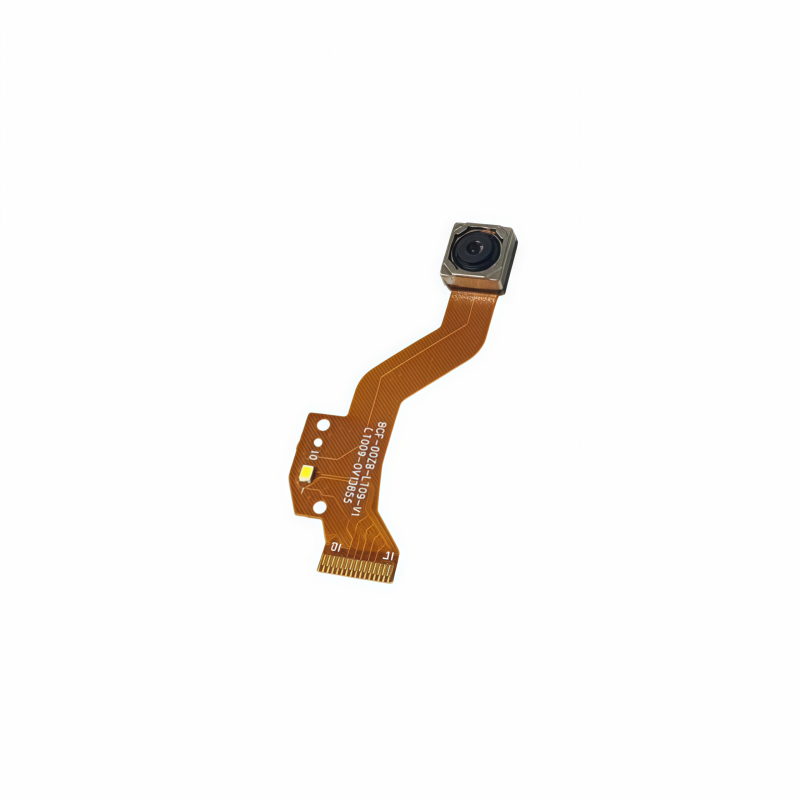

This 13-megapixel AF auto-focus MIPI camera module features a large-aperture 5P+IR optical lens, delivering exceptional low-distortion imaging performance and is compatible with tablets, smart devices, portable photography equipment, and other applications.

The module features a 1/3.06-inch image sensor with 1.12 μm pixel size, delivering a 4256×3168 HD resolution and 13-megapixel detail richness. It supports stable 30 fps frame rates at 13 MP resolution, ensuring smooth dynamic photography without blur.

Equipped with a professional 5P+IR optical lens featuring an F2.2 large aperture for ample light intake, it significantly enhances performance in low-light environments such as indoors or at dusk while effectively suppressing image noise. The lens delivers excellent distortion control with a value below 1.5%, ensuring distortion-free edges in portraits, documents, and real objects while delivering authentic, natural image reproduction.

Equipped with an AF auto-focus motor, it rapidly switches between close-range document scanning, mid-range portraits, and long-range scene focusing, delivering responsive focus performance and clear imaging for both near and distant subjects.

Equipped with a high-speed MIPI differential transmission interface, it exhibits strong interference resistance and enables stable transmission of high-pixel, high-definition image data streams. With a wide operating temperature range of-20°C to 70°C, it demonstrates excellent cold and heat resistance, ensuring long-term stable performance in both indoor and outdoor environments.

The module measures only 25.7×8.5 mm, making it lightweight and compact to save internal assembly space. It supports size customization for adaptation to various product structural requirements.

Application Scope

Custom services for smartphones, tablets, learning devices, and handheld QR code scanners.

Custom Service

If you need camera modules with different lenses or sizes, please contact us.

Specifications
