16-Megapixel FF Fixed-Focus MIPI Camera Module with 5P Water-Drop Lens, 1/3.1-Inch Sensor, 30fps HD Recording – Customizable Size
- Overview
- Recommended Products
Product Description

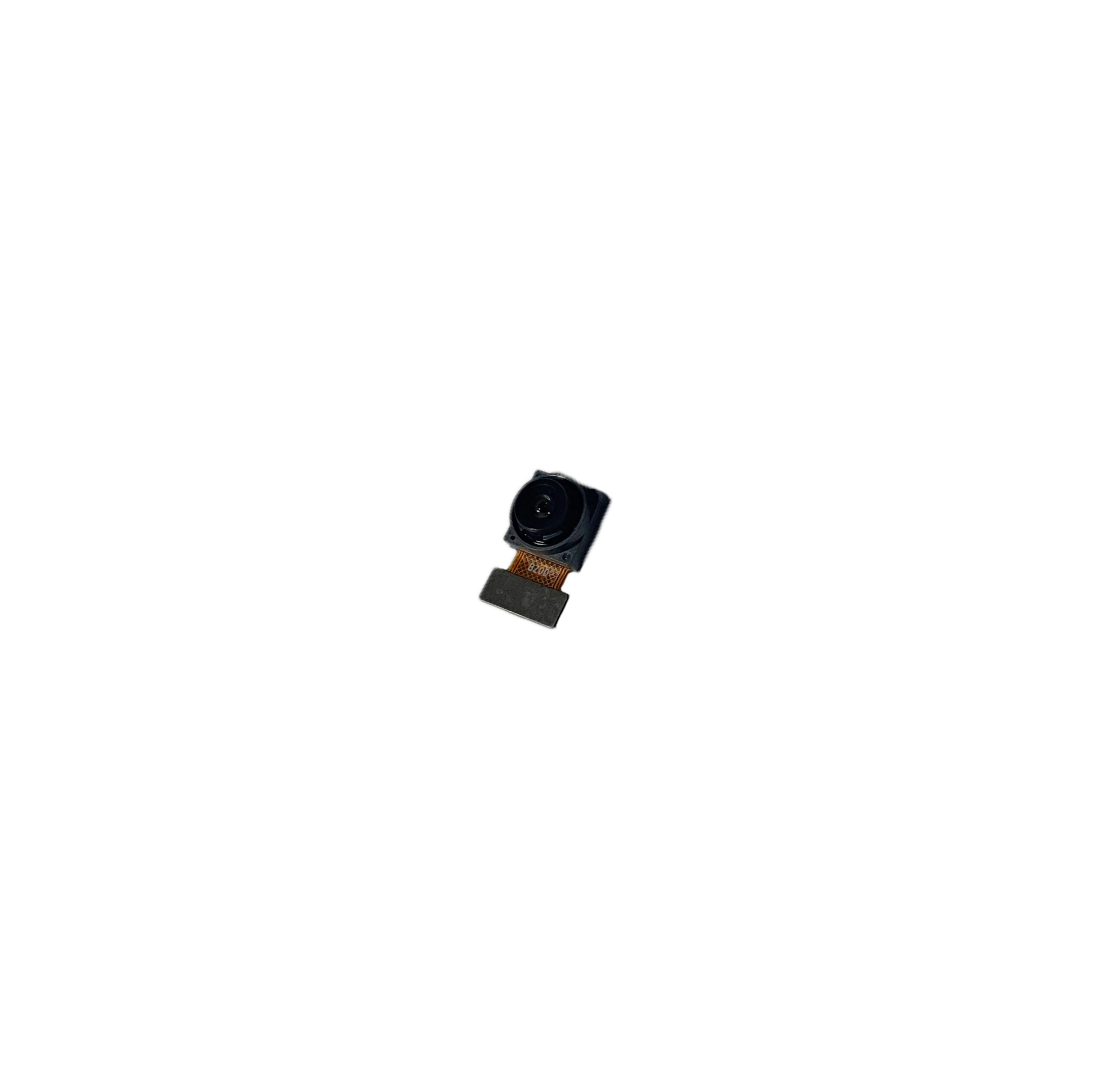

This compact 16-megapixel fixed-focus MIPI camera module features a water-drop lens and is designed for use with smartphones and other portable smart devices.
Equipped with a 1/3.1-inch image sensor featuring 1.0 μm pixel size, it delivers 4632×3480 HD resolution and operates stably at 30 fps. The camera uses a five-element waterdrop optical lens with a 75.5° standard field of view, maintaining image distortion below 1.0% and ensuring natural-looking portraits without stretching effects.
The high-speed MIPI serial interface offers strong interference resistance and smooth HD image transmission, operating within a temperature range of-10°C to 60°C, making it ideal for daily smartphone use. With dimensions of just 8mm × 14.8mm, the module is compact, saves internal space, and can be customized in size.
Application Scope
Custom services for smartphones and tablets.
Custom Service
If you need customized camera modules with different lenses or sizes, please contact us.
Specifications
| Item | Specification |
| Type | 16MP FF Camera Module |
| Model | BCF-PQ00-A678-V1 |
| Resolution | 4632 (H) * 3480 (V) |
| Pixel Size | 1.00 μm * 1.00 μm |
| Lens | 5P |
| Frame Rate | 16M @30fps |
| Interface | MIPI |
| Sensor | 1/3.1" |
| Lens Field of View | (D) 75.5° |
| Dimension | 8mm*14.8mm (Customizable) |
| Focus Type | FF Fixed Focus |
| Operating Temperature | -10°C to 60°C |
