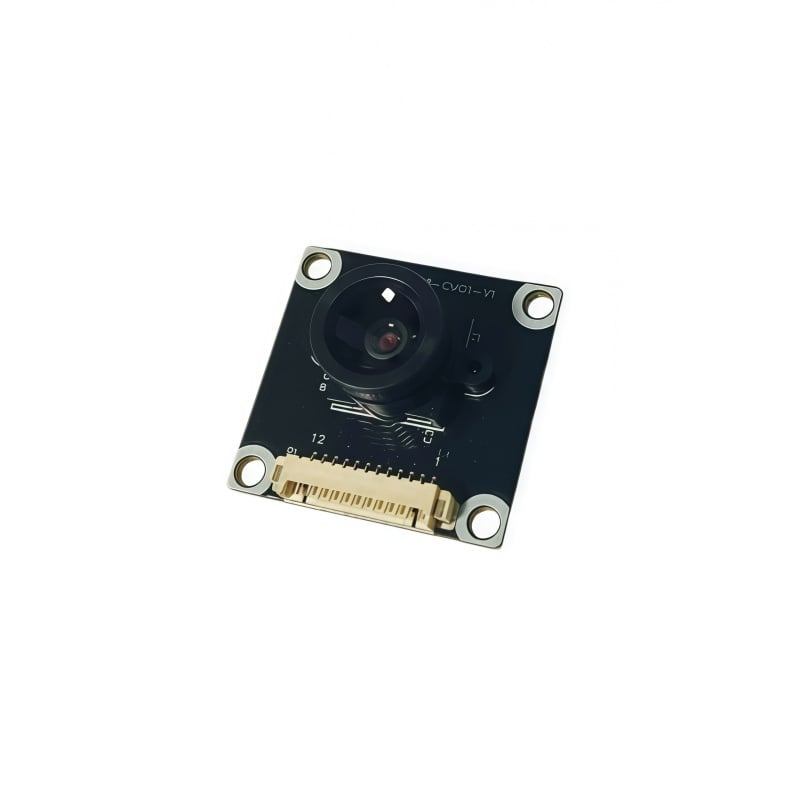

300K FF Fixed Focus DVP Camera Module 118° Wide-Angle 6P+IR Low Power Consumption Customizable Size

Product Introduction

This camera module is a cost-effective 300,000-pixel fixed-focus DVP camera module, suitable for various economical smart terminals, simple visual recognition, and auxiliary monitoring devices.

Equipped with a 1/6.5-inch image sensor with a 3.4μm ultra-large pixel size for outstanding light sensitivity, it outputs 640×480 standard VGA resolution images with stable 30fps smooth output at 24MHz clock. It adopts a 6P+IR multi-element optical lens paired with an F2.4 large aperture and 118° ultra-wide angle, providing extensive framing coverage and sufficient light intake. Combined with infrared fill light, it achieves clear imaging in low-light conditions.

It adopts a mature and universal DVP parallel interface with a simple driver circuit, compatible with various microcontrollers and low-cost main control boards, with a low development threshold. Power consumption is only 70mW under VGA 30fps conditions, saving more power during long-term operation.

Supports stable operation in wide temperature range from -20℃ to 70℃, suitable for various indoor general use scenarios. Standard size is 32mm×30mm, with size customization supported to match different device structural installation requirements.

Applications

Smart video door lock, peephole doorbell, bathroom smart mirror, robot vacuum visual module.

Customization Services

If you would like to customize camera modules with different lenses or different sizes, please contact us.
