5-Megapixel AF Auto-Focus MIPI Camera Module with 3P+IR Lens – Customizable Size Option

Product Description

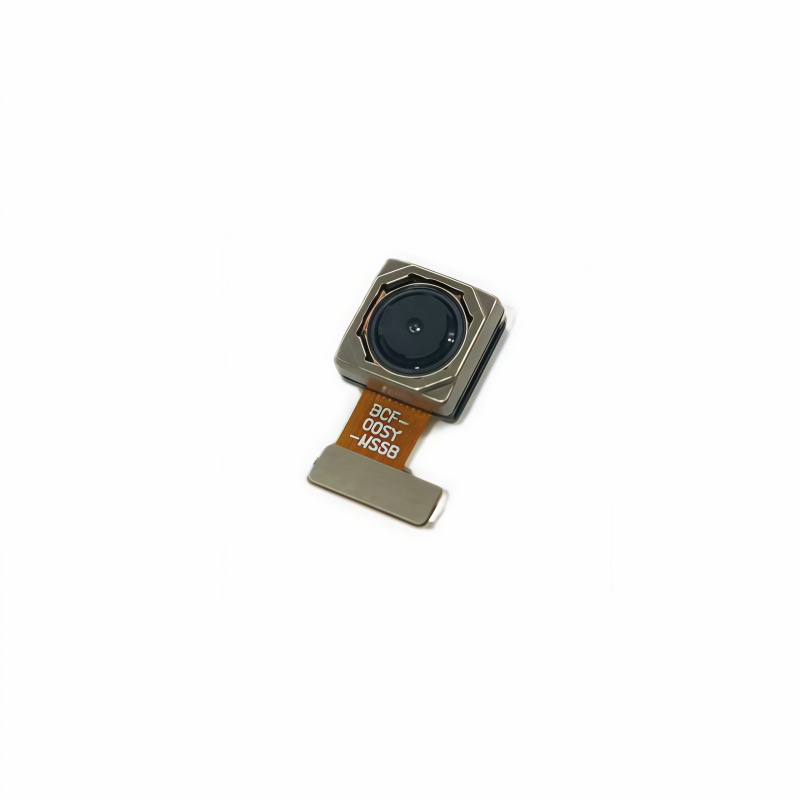

This compact 5-megapixel AF MIPI single-camera module features balanced performance and is widely compatible with tablets, smartphone secondary cameras, early education devices, and other screen-equipped smart devices.

The module features a 1/5-inch image sensor with 1.12 μm pixel size, delivering a 2576×1936 high-resolution image. In 5-megapixel mode, it maintains stable 30 fps output for smooth dynamic video recording with rich details, enabling clear capture of documents, portraits, and objects.

The optical configuration features a 3P+IR lens with an F2.4 aperture, supporting infrared fill lighting to enhance image quality in low-light or indoor environments while effectively reducing noise. With a 83.2-degree wide-angle field of view, the lens provides extensive framing, accommodating more content during group videography or subject photography, making it highly practical for everyday shooting.

Equipped with an integrated AF motor for rapid and precise focus response, it seamlessly adapts to various scenarios—from close-range ID scanning and medium-distance video calls to long-distance photography—with clear text reproduction without blurring, meeting diverse needs such as online classes, facial recognition, and everyday photography.

The module employs a high-speed MIPI transmission interface paired with the dedicated OK-14GM030-04 connector, offering exceptional anti-interference performance and stable HD image data streaming without lag or screen artifacts. It demonstrates outstanding environmental tolerance, operating within a temperature range of-20°C to 70°C and ensuring reliable long-term operation in both extreme cold and heat conditions when housed in sealed enclosures.

With a standard size of just 16×10 mm and an ultra-thin microstructure, it significantly saves internal installation space in devices and facilitates slim terminal designs. Additionally, it supports customized dimensions to accommodate various internal structural requirements of electronic products for mass production.

Application Scope

Custom services for smartphone secondary cameras, tablets, educational devices, and handheld QR code scanners.

Custom Service

If you need camera modules with different lenses or sizes, please contact us.
