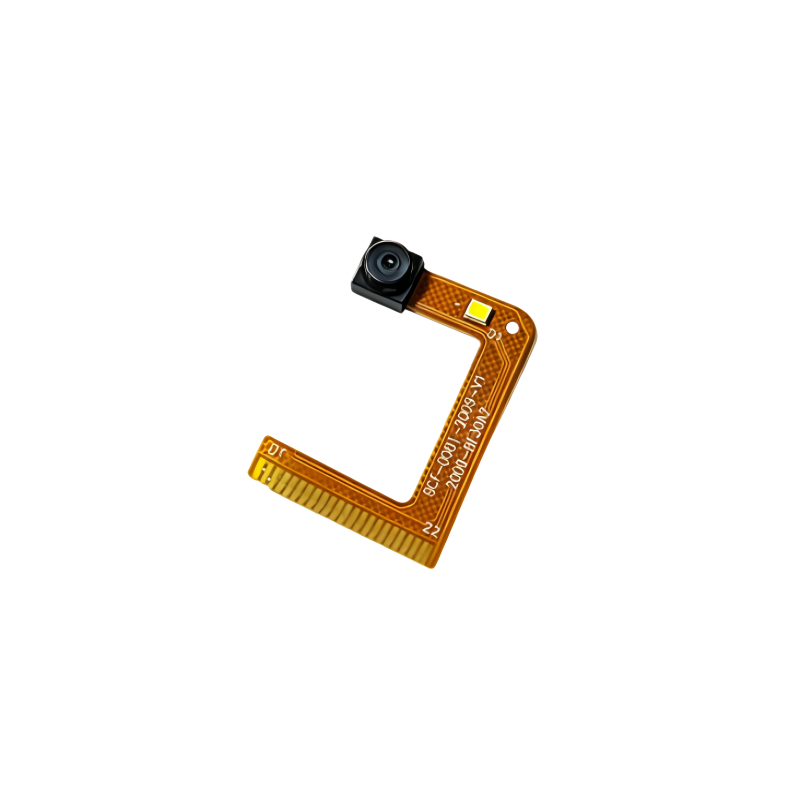

80K FF Fixed Focus DVP Camera Module 2P+IR Low Power Consumption Customizable Size

Product Introduction

This camera module is a compact 80,000-pixel DVP camera module. Equipped with a 1/15-inch image sensor and paired with 2.5μm fine pixel units, it outputs 328×248 QVGA resolution images at up to 24fps for smooth imaging. It comes standard with a 2P+IR infrared fixed-focus lens with a 60° standard field of view, delivering clear and transparent imaging day and night.

The module adopts a universal DVP parallel interface, enabling quick connection to various microcontrollers with low integration difficulty. Under QVGA conditions, power consumption is only 25mW. The ultra-low power design effectively extends the overall device battery life. The wide operating temperature range covers -20℃ to 70℃, ensuring stable imaging performance in both high and low temperature environments. Standard size is 24.6×17mm, with support for customized dimensions. Compact and flexible, it is the preferred micro image acquisition accessory for portable digital devices such as tablets and smartphones.

Applications

Smartphone secondary camera, tablet front-facing secondary camera, children's smartwatch, smart translator, etc.

Customization Services

If you would like to customize camera modules with different lenses or different sizes, please contact us.

Specifications
