500W+800W AF Dual-Camera Module with MIPI Interface and 4-Pixel Infrared Lens – Customizable Size for Tablet Learning Devices

Product Description

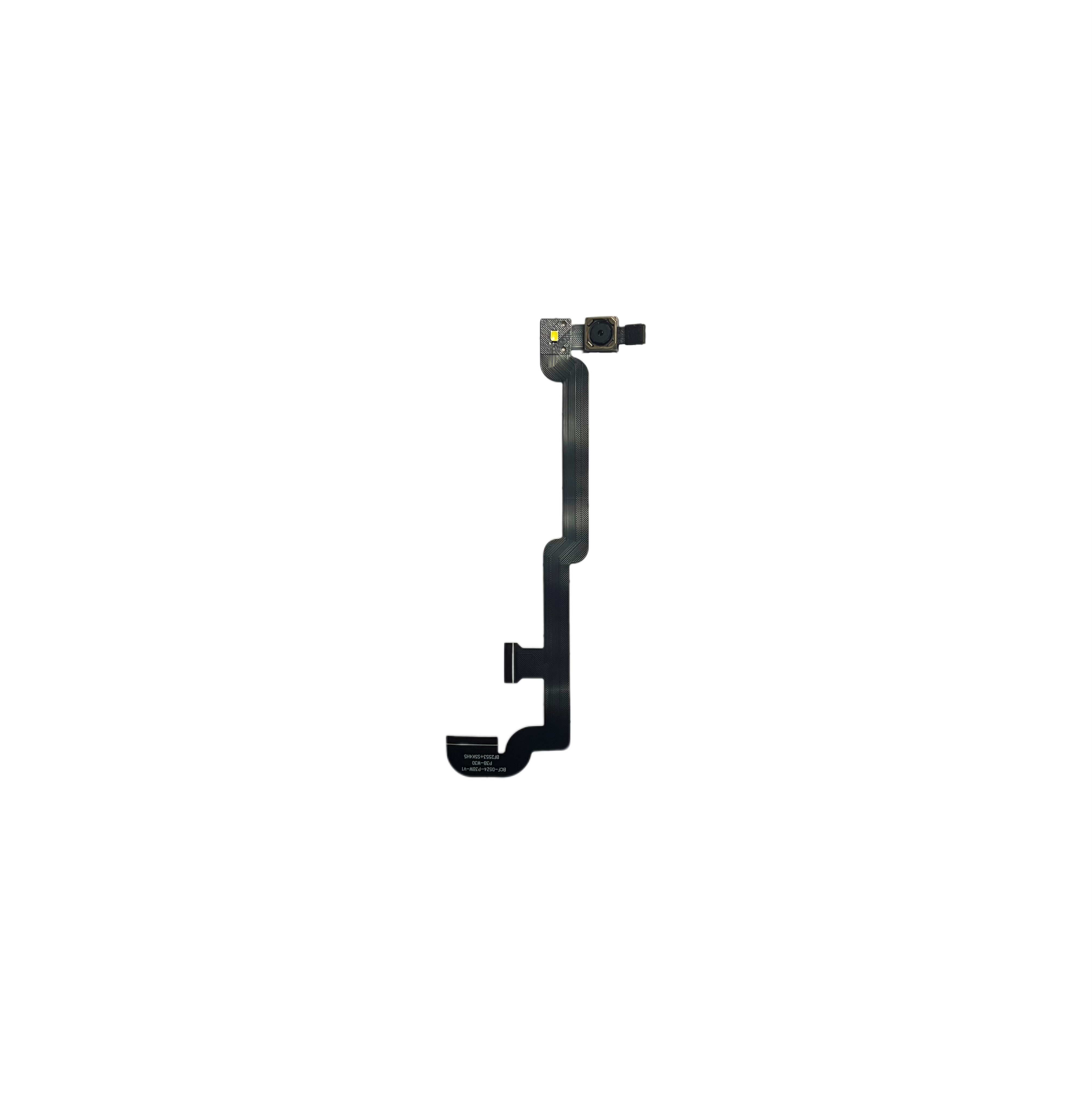

This integrated MIPI dual-camera module features a front-facing 5-megapixel fixed-focus lens and a rear-facing 8-megapixel autofocus lens, designed specifically for tablets and portable educational smart devices.

The front-facing 5-megapixel camera features a 1/5-inch image sensor with 2.8 μm pixels, delivering exceptional light sensitivity and producing 2592×1944 HD images at 30 fps. With a standard 73.9-degree field of view, it supports portrait video calls, online lectures, and facial recognition unlocking, offering minimal image distortion and natural multi-person framing. Equipped with a 4P+IR optical lens, it delivers clear imaging in low-light conditions and is ideal for indoor environments with ambient lighting.

The rear-mounted 8-megapixel AF lens features a 1/4-inch sensor with 1.12 μm fine pixels, delivering ultra-high-definition resolution of 3264×2448. Equipped with an AF motor, it ensures sharp focus on close-up subjects such as test papers, picture books, and document text, while also enabling rapid focusing on distant scenes like landscapes, meeting both photography and image recognition needs. With a diagonal field of view of 76.5 degrees, the imaging accurately reproduces real-world scenes. Additionally, it incorporates a 4P infrared lens that supports infrared illumination for night vision photography.

The dual-camera system shares a high-speed MIPI serial differential interface, offering strong interference resistance and ensuring stable synchronous image transmission between the front and rear cameras. With an operating temperature range of-10°C to 60°C, it is suitable for various scenarios including outdoor use on tablets and indoor learning environments.

Standard size: 123 mm × 53 mm, featuring integrated front and rear dual cameras to simplify device assembly; supports custom dimensions for flexible adaptation to the internal structure of various tablet and educational device models.

Application Scope

Tablets, educational smart hardware.

Custom Service

If you need camera modules with different lenses or sizes, please contact us.

Specifications
